EasyObdII Premium Software Upgrade
Version:
3.9.1 UPGRADE (Released 17/01/2015) - For users of Version 3.0.0 only
** IMPORTANT **
THIS VERSION WILL ONLY WORK IF YOU HAVE VERSION 3.0.0 INSTALLED.
You can purchase 100% compatible scantools from our dedicated scantools site at https://www.easyobdtools.com
Features:

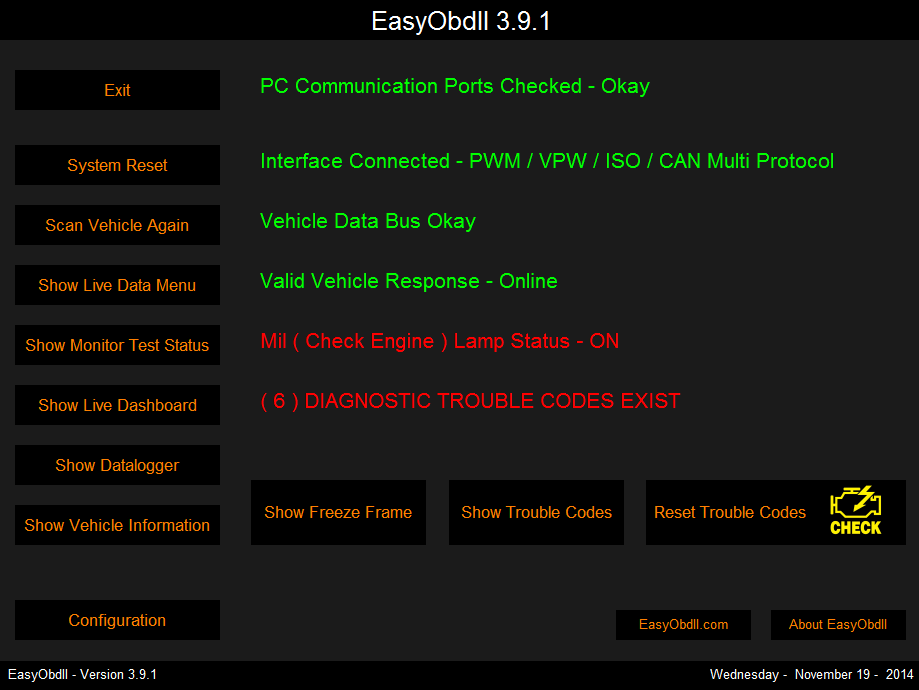

- Improved GUI Interface - NEW LOOK!
- PDF reporting
- Fullscreen mode
- Improved Logger to CSV file
- Configuration page with autosave
- Show Stored , Pending and Permanent faults
- Bluetooth speeds up to 460800 Baud
- USB speed 38400 to 115200 Baud
- Windows XP SP2 to Windows 10 (Excluding Mobile) Compatibility
- Auto port and Scantool recognition and configuration
- USB Elmscan5 AND OBDLink SX support
- Bluetooth OBDLink BT, LX and MX support
- Touchscreen compatible
- Improved CAN Data support
- Vehicle Dashboard - Revs , Speed , Load , Fuel , Temperature , Battery
- Vehicle Information
- I/M Monitoring Test Results
- Live Sensor Data
- Freeze Frame
- Enhanced Error Detection
- Reads and resets vehicle trouble codes and MIL (Check Engine) Lamp
- Show text descriptions of generic Powertrain (P) and Network (U) codes
- Manufacturer specific and other generic codes will be displayed without text description
This upgrade version will only work if you have Version 3.0.0 installed.
Secure Ordering by Fastspring
Instand download
Scantool Hardware Support List
USB Devices Supported
- ElmScan5 Compact
- OBDlink
- OBDlink SX
Bluetooth Devices Supported
- OBDLink BT
- OBDlink MX
- OBDlink LX
PID Support List
Actual Parameter Data is Vehicle Specific. The software will only show those parameters supported by the vehicle.
PID / Description
00 / Supported PIDs 01 to 1F
01 / Number of DTCs , MIL Status and available OB Tests
02 / Freeze frame DTC
03 / Fuel system status
04 / Calculated Engine load
05 / Engine coolant Temperature
06 / Short-term fuel % trim bank 1
07 / Long-term fuel % trim bank 1
08 / Short-term fuel % trim bank 2
09 / Long-term fuel % trim bank 2
0A / Fuel pressure
0B / Intake manifold pressure
0C / Engine RPM
0D / Vehicle speed
0E / Timing advance on cylinder 1
0F / Intake air temperature
10 / Mass air flow rate
11 / Throttle position
12 / Status air status
13 / O2 sensor present
14 / Oxygen sensor volts bank 1 sensor 1
15 / Oxygen sensor volts bank 1 sensor 2
16 / Oxygen sensor volts bank 1 sensor 3
17 / Oxygen sensor volts bank 1 sensor 4
18 / Oxygen sensor volts bank 2 sensor 1
19 / Oxygen sensor volts bank 2 sensor 2
1A / Oxygen sensor volts bank 2 sensor 3
1B / Oxygen sensor volts bank 2 sensor 4
1C / OBD standard
1D / O2 sensor present 2
1E / Auxiliary input status
1F / Run time since engine start
20 / Supported PIDs 21 to 3F
21 / Distance travelled with MIL on
22 / Relative fuel rail pressure
23 / Fuel rail pressure (Diesel)
24 / O2 sensor bank 1, sensor 1 (lambda volts)
25 / O2 sensor bank 1, sensor 2 (lambda volts)
26 / O2 sensor bank 1, sensor 3 (lambda volts)
27 / O2 sensor bank 1, sensor 4 (lambda volts)
28 / O2 sensor bank 2, sensor 1 (lambda volts)
29 / O2 sensor bank 2, sensor 2 (lambda volts)
2A / O2 sensor bank 2, sensor 3 (lambda volts)
2B / O2 sensor bank 2, sensor 4 (lambda volts)
2C / Commanded EGR
2D / EGR error
2E / Commanded evaporative purge
2F / Fuel level
30 / Number of warmups since DTCs cleared
31 / Distance travelled since DTCs cleared.
32 / Evaporation system vapour pressure
33 / Barometric pressure
34 / O2 sensor bank 1, sensor 1 (lambda current)
35 / O2 sensor bank 1, sensor 2 (lambda current)
36 / O2 sensor bank 1, sensor 3 (lambda current)
37 / O2 sensor bank 1, sensor 4 (lambda current)
38 / O2 sensor bank 2, sensor 1 (lambda current)
39 / O2 sensor bank 2, sensor 2 (lambda current)
3A / O2 sensor bank 2, sensor 3 (lambda current)
3B / O2 sensor bank 2, sensor 4 (lambda current)
3C / Catalyst temperature bank 1, sensor 1
3D / Catalyst temperature bank 2, sensor 1
3E / Catalyst temperature bank 1, sensor 2
3F / Catalyst temperature bank 2, sensor 1
40 / Supported PIDs 41 to 5F
42 / Control module voltage
44 / Commanded equivalence ratio
45 / Relative throttle position
46 / Ambient air temperature
47 / Absolute throttle position B
48 / Absolute throttle position C
49 / Accelerator pedal position D
4A / Accelerator pedal position E
4B / Accelerator pedal position F
4C / Commanded throttle actuator
4D / Engine run time since MIL on
4E / Engine run time since DTCs cleared
4F / External test 1 configuration information
50 / External test 2 configuration information
51 / Fuel type
52 / Percentage alcohol mix
54 / Evaporative system vapour pressure
59 / Absolute fuel rail pressure
5A / Relative accelerator pedal position
5B / Hybrid battery pack remaining life
5C / Engine oil temperature
5D / Fuel injection timing
5E / Fuel rate
5F / Emission Requirements
